SQL Server and Linux: No Ancient Heavenly Connections, But...

By Brian Jepson, bjepson@ids.net


Prologue: Composite Conversations with Fictional Detractors
Rain fell on the concrete sidewalk, bringing out that indescribable smell of the city. Mr Fiction and I were enjoying the weather, sitting at a table under the newly installed awning just outside of the AS220 cafe. We should have been inside, perhaps building more Linux boxen for the AS220 computer lab, or maybe writing the two-way replication script between our in-house Linux server and the machine that hosts our web pages (http://www.ids.net/~as220). No, instead, we were breathing in the Providence air, enjoying the smell and feeling of the city before it got too hot, too muggy, before we got too lazy.

Mr. Fiction isn't completely convinced about Linux; perhaps he never will be. Nevertheless, he dutifully helps me when I'm trying to bring up Linux on an old Compaq 386 with the weirdest memory chips, or when we need to build the kernel yet again, because I've decided that I'm ready to trust ext2fs file system compression or some such whim.

This time, Mr. Fiction was baiting me. "Alright, Brian. How can Linux help me here? I've got a client who is using SQL Server on Windows NT for her company-wide databases. She'd really like to publish this data on her Intranet using HTML and CGI. While she's really happy with Microsoft for a database server platform, she's not convinced that it's good as a web server. We're looking into Unix-based solutions, and we really need a platform that allows us to write CGI script that can connect to the database server. But since Linux doesn't have connectivity to..."

That's when I had to stop him; Linux can connect to Sybase SQL Server. What's more, it can also connect to Microsoft SQL Server. Some time ago, Sybase released an a.out version of their Client-Library (CT-Lib) for Linux. Greg Thain (thain@ntdev1.sunquest.com) has converted the libraries to ELF. As a result, anyone using an elf-based Linux later than 2.0 should be able to link applications against these libraries. There's a nice section on this issue that's available in the Sybase FAQ, at http://reality.sgi.com/pablo/Sybase_FAQ/Q9.17.html, and the libraries themselves can be downloaded from:

   ftp://mudshark.sunquest.com/pub/ctlib-linux-elf/ctlib-linux-elf.tgz.
If you are using an a.out system, you can take your chances with the libraries that Sybase originally released. These are available at:
   ftp://ftp.sybase.com/pub/linux/sybase.tgz

A Neon Joyride with CT-Lib
If you've read this far, I'm going to assume that you have access to an SQL Server. I've used these libraries with the Sybase System 11 we have running at work on a Solaris 2.4 system, and the examples for this article were developed using Microsoft SQL Server 6.0 running on Windows NT 4.0. If you don't have SQL Server, but would like to experiment, you can download an evaluation version of SQL Server Professional for Windows NT at:
   http://www.sybase.com/products/system11/workplace/ntpromofrm.html
If you do this, it goes without saying that you'll need another computer (running Windows NT) that's connected to your Linux box via TCP/IP. Sadly, there is no version of Sybase or Microsoft SQL Server that runs on Linux. However, if you have access to a machine that is running SQL Server, then you will likely find this article interesting.

In order to make use of these examples, you need to have been assigned a user id and password on the SQL Server to which you will connect. You should also know the hostname of the server, and most importantly, the port on which the server listens. If you installed the server yourself, you will know all of this. Otherwise, you will need to get this information from your sysadmin or dba.

The first thing to tackle is the installation and configuration of the Client-Library distribution. The ctlib-linux-elf.tar.gz file includes a top-level sybase directory. Before you extract it, you should probably pick a permanent home for it; common places are /opt or /usr/local. When you extract it, you should be sure that you are root, and make sure your working directory is the directory that you've chosen. The process might look something like this:

   bash-2.00$ su
   Password:
   bash-2.00# cd /usr/local
   bash-2.00# tar xvfz ctlib-linux-elf.tar.gz
While you will be statically linking these libraries in with application programs, any program that uses the Sybase libraries will need to find the directory. There are two ways to deal with this, and I usually do both. The first is to create a user named sybase. This user's home directory should be the Client-Library directory into which you extracted ctlib-linux-elf.tar.gz. The user won't need to log in, and I'm not aware of any programs that need to su to that user id. I believe the user needs to be there so that ~sybase can be resolved to the directory you chose. Here's the relevant line from /etc/passwd for the sybase user:
   sybase:*:510:100:SYBASE:/usr/local/sybase:/bin/true
Of course, your UID and GID may differ, and you can certainly use the adduser utility to add the sybase user. The critical thing is to ensure that you've set the home directory correctly.

The second thing you can do to help applications find the Sybase directory is to create an environment variable called $SYBASE. This should simply include the name of the Client-Library home directory:

   bash-2.00$ export SYBASE=/usr/local/sybase
The interfaces file included in the top of the Client-Library home directory (/usr/local/sybase/interfaces in this example) must be set up correctly in order for anything to work. The interfaces file allows your clients to associate a symbolic name with a given server. So, any server you wish to query must be configured in the interfaces file. If you've already got an interfaces file in non-TLI format (this is the name of the network API used by Sybase on Solaris, and the interfaces file differs as well), you should be able to use it or adapt it. Even if you don't, you can write your own entries. Here's a sample entry (that's a tab on the second line, and it is very important):
   ARTEMIS
           query tcp ether artemis 1433
The parts of this entry that you are concerned about are:

ARTEMIS This is the name by which client programs will refer to the server. It doesn't have to be the same as the host name.
artemis This is the host name of the server.
1433 This is the TCP/IP socket that the server listens on.

Here's an interfaces file that includes entries for both a Sybase SQL Server (running on Solaris) and a Microsoft SQL Server, running on Windows NT (comments begin with #). Note that the entries ARTEMIS and NTSRV refer to the same server:

## DEV_SRVR on Sol2-5 (192.168.254.24)
##       Services:
##              query   tcp     (5000)

DEV_SRVR
        query tcp ether Sol2-5 5000

## NTSRV on artemis (192.168.254.26)
##       Services:
##              query   tcp     (1433)

NTSRV
        query tcp ether artemis 1433

## ARTEMIS on artemis (192.168.254.26)
##       Services:
##              query   tcp     (1433)

ARTEMIS
        query tcp ether artemis 1433

SQSH - an Excellent Alternative to isql
(or is isql a poor alternative to SQSH?)
SQSH is a freely redistributable alternative to the isql program that is supplied with Sybase SQL Server. It's basically a shell that makes it easy to send SQL statements to the server. It's written by Scott Gray (gray@voicenet.com), a member of the Sybase FAQ Hall of Fame. The SQSH home page is at http://www.voicenet.com/~gray/ and includes the latest release of SQSH as well as the SQSH FAQ and a lot of other information.

SQSH can be compiled on Linux; this should be simple for anyone who is familiar with compiling C programs, such as the Linux kernel, Perl, or other tools you may have installed from source. The first thing to do is to extract the SQSH archive, preferable in some place like /usr/src. I usually do installations as root; some people wait until just before the 'make install' portion to become root. You can extract the distribution with the following command:

   bash-2.00# tar xvfz sqsh-1.5.2.tar.gz
And then you can enter the source directory with:
   bash-2.00# cd sqsh-1.5.2
(of course, if you are building a newer version, you will need to use a different file name and directory)

There are two files in the source directory that you must read; README and INSTALL. If you'd like to compile SQSH with bash-style command history editing, you'll need to get your hands on the GNU Readline library, unless it's already installed on your system. I believe that it's no longer packaged as a separate library, and is now part of the bash distribution, available at:

   ftp://prep.ai.mit.edu/pub/gnu/
Before you do anything, you'll need to make sure you set the $SYBASE environment variable, which I discussed earlier in this article. Then, you should run the configure script. This process might look like:
   bash-2.00# export SYBASE=/usr/local/sybase/
   bash-2.00# ./configure
   creating cache ./config.cache
   checking for gcc... gcc
   [etc., etc.]
If you've installed the GNU Readline library, and you want to use it with SQSH (who wouldn't?) you should add the following option to ./configure:
   bash-2.00# ./configure -with-readline
After you've run configure, you should examine the Makefile, and follow the instructions at the top. Generally, ./configure does everything right, but you should double-check. If everything looks okay, you can type:
   bash-2.00# make
And sit back and wait. If everything went fine, you should have a new sqsh executable that you can install with:
   bash-2.00# make install
In order to run it, you must supply a server name (-S), username (-U), and password (-P). The server name corresponds to the name that was set up in your interfaces file. Once you've started sqsh, you can issue SQL commands. To send whatever you've typed to the server, you can type go by itself on a line. To clear the current query, you can type reset. If you'd like to edit the current query, you can type vi. Among many other features, sqsh features the ability to use shell-style redirection after the 'go' keyword. Here's a sample session:

bash-2.00# sqsh -Ubjepson -Psecretpassword -SARTEMIS
sqsh-1.5.2 Copyright (C) 1995, 1996 Scott C. Gray
This is free software with ABSOLUTELY NO WARRANTY
For more information type '\warranty'
1> use pubs  /* the pubs sample database */
2> go
1> SELECT au_lname, city
2> FROM authors
3> go | grep -i oakland
 Green                                    Oakland
 Straight                                 Oakland
 Stringer                                 Oakland
 MacFeather                               Oakland
 Karsen                                   Oakland
1> sp_who
2> go
 spid   status     loginame     hostname   blk   dbname     cmd
 ------ ---------- ------------ ---------- ----- ---------- ----------------
      1 sleeping   sa                      0     master     MIRROR HANDLER
      2 sleeping   sa                      0     master     LAZY WRITER
      3 sleeping   sa                      0     master     RA MANAGER
      9 sleeping   sa                      0     master     CHECKPOINT SLEEP
     10 runnable   bjepson                 0     pubs       SELECT
     11 sleeping   bjepson                 0     pubs       AWAITING COMMAND

(6 rows affected, return status = 0)
1>

CGI, Sybperl and Linux: All the Colours in my Paintbox
Getting back to Mr. Fiction's problem, we need to answer a big question; How can we connect a Linux web server to Sybase? If you've done a lot of CGI programming, you've probably, but not necessarily, used a little bit of Perl. Perl is an excellent tool for CGI development; its modular design makes it easy to extend. In the examples which follow, we'll see how to use the CGI module in conjunction with Sybperl. Combining these tools, we'll be able to easily build CGI applications that can connect to an SQL Server database.

It's probably best to use a Perl that has been installed from source. In the past, I have had trouble with binary distributions, and so, I always install the Perl source code and build it myself. You should obtain and extract the following modules from CPAN (Comprehensive Perl Archive Network):

   CGI.pm:  http://www.perl.com/CPAN/modules/by-module/CGI/CGI.pm-2.36.tar.gz
   Sybperl: http://www.perl.com/CPAN/modules/by-module/Sybase/sybperl-2.07.tar.gz
Installing the CGI module is quite simple. You need to extract it, enter the directory that's created, and follow the instructions in the README file. For most Perl modules, this will follow the form:
   bash-2.00# tar xvfz MODULE_NAME.tar.gz
   bash-2.00# cd MODULE_NAME
   bash-2.00# less README
   [ ... you read the file ...]
   bash-2.00# perl Makefile.PL
   [ ... some stuff happens here...]
   bash-2.00# make
   [ ... lots of stuff happens here...]
   bash-2.00# make test
   [ ... lots of stuff happens here...]
   bash-2.00# make install
You should double check to make sure that CGI.pm is not already installed; if you install it, you should do it as root, since it needs to install the module into your site-specific module directories. Here's the commands I typed to make this happen for the CGI extension (note that there are no tests defined for CGI.pm, so I didn't need to do 'make test'):
    bash-2.00# tar xvfz CGI.pm-2.36.tar.gz
    bash-2.00# cd CGI.pm-2.36
    bash-2.00# perl Makefile.PL
    bash-2.00# make
    bash-2.00# make install
Once you've installed it, you can use it in your Perl programs; do a 'perldoc CGI' for complete instructions.

Installing Sybperl is a little more involved. If you don't want to build Sybperl yourself, you can download a binary version from:

   ftp://mudshark.sunquest.com/pub/ctlib-linux-elf/sybperl.tar.gz
If you do want to go ahead and build it yourself, first extract it and enter the source directory:
   bash-2.00# tar xvfz sybperl-2.07.tar.gz
   bash-2.00# cd sybperl-2.07/
Again, it's really important that you read the README file. Before you run 'perl Makefile.PL,' you will need to set up a couple of configuration files. The first is CONFIG. This file lets you set the following parameters:

DBLIBVS The version of DBlib that you have installed. Under Linux, only CTlib is available, so this should be set to 0.
CTLIBVS This should be set to 100, as indicated in the file.
SYBASE This is the directory where you installed the Client-Library distribution. It should be the same as $SYBASE or ~sybase.
EXTRA_LIBS These are the names of additional libraries that you need to link against. The Sybase Client-Library distribution typically includes a library called libtcl.a, but this conflicts with the Tcl library installed under many versions of Linux. So, this has been renamed libsybtcl.a in the Linux version of CTlib. This option should also include libinsck.a. The value for this configuration option should be set to '-lsybtcl -linsck'.
EXTRA_DEFS It does not appear that this needs to be changed, unless you are using Perl 5.001m, in which case you need to add -DUNDEF_BUG.
LINKTYPE Under Linux, I am not aware of anyone who has managed to get a dynamically loadable version of Sybperl to build. I have not been able to get it to compile as a dynamic module, so I always set this to 'static', which results in a new perl executable being built.

Here's my CONFIG file:

#
# Configuration file for Sybperl
#
# DBlibrary version. Set to 1000 (or higher) if you have System 10
# Set to 0 if you do not want to build DBlib or if DBlib is not available
# (Linux, for example)
DBLIBVS=0


# CTlib version. Set to 0 if Client Library is not available on your
# system, or if you don't want to build the CTlib module. The Client
# Library started shipping with System 10.
# Note that the CTlib module is still under construction, though the
# core API should be stable now.
# Set to 100 if you have System 10.
CTLIBVS=100

# Where is the Sybase directory on your system (include files &
# libraries are expected to be found at SYBASE/include & SYBASE/lib
SYBASE=/usr/local/sybase

# Additional libraries.
# Some systems require -lnsl or -lBSD.
# Solaris 2.x needs -ltli
# DEC OSF/1 needs -ldnet_stub
# See the Sybase OpenClient Supplement for your OS/Hardware
# combination.
EXTRA_LIBS=-lsybtcl -linsck

# Additional #defines.
# With Perl 5.001m, you will need -DUNDEF_BUG.
# With Perl 5.002, none are normally needed, but you may wish to
# use -DDO_TIE to get the benefit of stricter checking on the
# Sybase::DBlib and Sybase::CTlib attributes.
#EXTRA_DEFS=-DUNDEF_BUG
EXTRA_DEFS=-DDO_TIE


# LINKTYPE
# If you wish to link Sybase::DBlib and/or Sybase::CTlib statically
# into perl uncomment the line below and run the make normally. Then,
# when you run 'make test' a new perl binary will be built.
LINKTYPE=static

The next file that you need to enter is the PWD file. This contains three configuration options; UID (user id), PWD (password), and SRV (server name). It is used to run the test, after the new perl binary is built. Here's my PWD file:

# This file contains optional login id, passwd and server info for the test
# programs:
# You probably don't want to have it lying around after you've made
# sure that everything works OK.

UID=sa
PWD=secretpassword
SRV=ARTEMIS

Now that you've set up the configuration files, you should type 'perl Makefile.PL' followed by 'make'. Disregard any warning about -ltcl not being found. After this is done, you should type 'make test', which will build the new Perl binary and test it. All of the tests may not succeed, especially if you are testing against Microsoft SQL Server (the cursor test will fail).

When you are ready to install Sybperl libraries, you can type 'make install'. You should be aware that the new binary will be statically linked to the Client-Library, and will be slightly bigger. If this offends you, you can rename the new perl to something like sybperl and install it in the location of your choice. The new perl binary is not installed by default, so you can install it wherever you want. You will not be able to use the Sybperl libraries from your other version of Perl; you will have to use the new binary you created.

For simplicity's sake, let's assume that you are going to rename the new binary to sybperl, and move to /usr/local/bin/sybperl. The README file includes alternate instructions for installing the new binary. The manual is included in the pod/ directory under the Sybperl source code. You can also read the documentation with 'perldoc Sybperl'.

Here's a sample Perl program that uses CGI and Sybase::CTlib to give the users the ability to interactively query the authors table that is included with the pubs sample database:

#!/usr/local/bin/sybperl use CGI; use Sybase::CTlib; # This is a CGI script, and it will not have the $SYBASE # environment variable, so let's help it out... # $ENV{SYBASE} = '/usr/local/sybase'; # Get a "database handle", which is a connection to the # database server. # my $dbh = new Sybase::CTlib('bjepson', 'secretpassword', 'ARTEMIS'); # Instantiate a new CGI object. # my $query = new CGI; # Print the header and start the html. # print $query->header; print $query->start_html(-title => "Sybperl Example", -bgcolor => '#FFFFFF'); # Put up a form, a prompt, an input field, and a submit button. # print qq[<h1>Sybperl Example</h1><hr>]; print $query->startform; print qq[Enter part of an author's name: ]; print $query->textfield( -name => 'query_name' ); print $query->submit; # End the form. # print $query->endform; # If the user entered an author name, find all authors # whose first and/or last names match the value. # if ($query->param('query_name')) { # Use the pubs database. # $dbh->ct_sql("use pubs"); # Get the value the user typed # $query_name = $query->param('query_name'); # Find all of the matching authors. This search # is case-sensitive. # my $sql = qq[SELECT au_fname, au_lname ] . qq[FROM authors ] . qq[WHERE au_fname LIKE '%$query_name%' ] . qq[OR au_lname LIKE '%$query_name%' ] . qq[ORDER BY au_lname, au_fname]; my @rows = $dbh->ct_sql($sql); # Iterate over each row and display the first # and last name in separate table cells. # print qq[<table border>]; print qq[<th>First Name</th><th>Last Name</th>]; my $thisrow; foreach $thisrow (@rows) { # Each row is a reference to an array, which # in this case, contains two elements; the # values of the first and last names. # my $au_fname = ${$thisrow}[0]; my $au_lname = ${$thisrow}[1]; print qq[<tr><td>$au_fname</td><td>$au_lname</td></tr>]; } print qq[</table>]; } # End the html. # print $query->end_html;

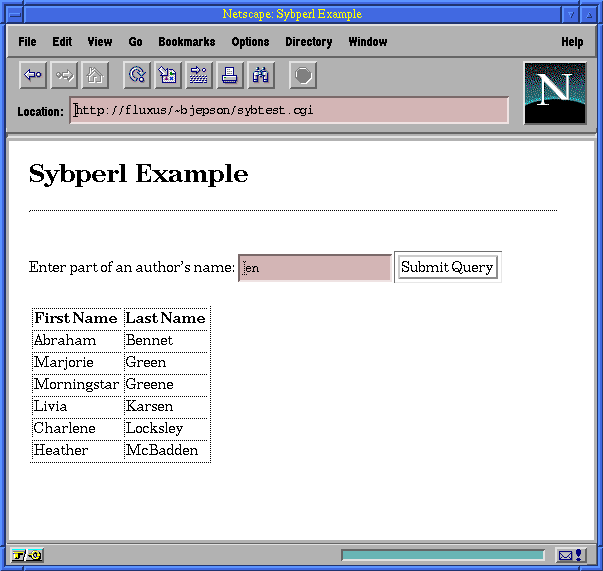

And here's an example of the program's output:


Everything Has Got to be Just Like You Want it To
(or, things are more like they are now than they ever were before)
I've found the Sybase libraries for Linux to be quite useful. I find myself in a lot of places where either Sybase or Microsoft SQL Server sees heavy use. It's nice to be able to connect, especially when dialing in over a modem. I've found that sqsh performs much better making the connection over dialup than isql running on a remote machine, even when I'm connected with rlogin.

I hope these ramblings have been enjoyable for you; I think Mr. Fiction's head is spinning, but it's all for the best. We've had some of the best doctors in the world look at it, and while no one can agree on exactly when it will stop spinning, they all agree that it looks much better that way.

Brian Jepson, bjepson@ids.net


Copyright © 1997, Brian Jepson
Published in Issue 18 of the Linux Gazette, June 1997
