A Hacker's Guide to Protecting Your Internet Site and Network
This chapter amounts to easy reading. Its purpose is to familiarize you with holes: where they come from, what they are, and how they affect Internet security. This is important information because throughout the remainder of this book, I will be examining many holes.
The Concept of the Hole
Before I examine different types of holes, I'd like to define the term hole. A hole is any feature of hardware or software that allows unauthorized users to gain access or increase their level of access without authorization. I realize this is a broad definition, but it is accurate. A hole could be virtually anything. For example, many peculiarities of hardware or software commonly known to all users qualify as holes. One such peculiarity (perhaps the most well known)is that CMOS passwords on IBM compatibles are lost when the CMOS battery is shorted, disabled, or removed. Even the ability to boot into single-user mode on a workstation could be classified as a hole. This is so because it will allow a malicious user to begin entering interactive command mode, perhaps seizing control of the machine.
So a hole is nothing more than some form of vulnerability. Every platform has holes, whether in hardware or software. In short, nothing is absolutely safe.
You might draw the conclusion that no computer system is safe and that the entire Net is nothing but one big hole. That is incorrect. Under the circumstances, you should be wondering why there aren't more holes. Consider that the end-user never takes much time to ponder what has gone into making his system work. Computer systems (taken holistically) are absolute wonders of manufacturing. Thousands of people are involved in getting a computer (regardless of platform) to a retail location. Programmers all over the world are working on applications for any given platform at any given time. Everyone from the person who codes your calendar program to the dozen or so folks who design your firewall are all working independently. Under these circumstances, holes should be everywhere; but they aren't. In fact, excluding holes that arise from poor system administration, security is pretty good. The problem is that crackers are also good.

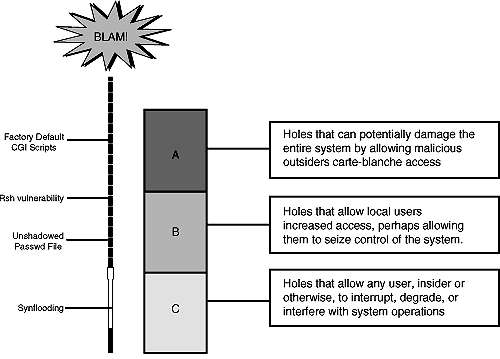

The Vulnerability Scale
There are different types of holes, including
These types of holes and attacks can be rated according to the danger they pose to the victim host. Some represent significant dangers that can destroy the target; others are less serious, qualifying only as nuisances. Figure 15.1 shows a sort of "Internet Richter scale" by which to measure the dangers of different types of holes.
Holes That Allow Denial of Service
Holes that allow denial of service are in category C, and are of low priority. These attacks are almost always operating-system based. That is, these holes exist within the networking portions of the operating system itself. When such holes exist, they must generally be corrected by the authors of the software or by patches from the vendor.
For large networks or sites, a denial-of-service attack is of only limited significance. It amounts to a nuisance and no more. Smaller sites, however, may suffer in a denial-of-service attack. This is especially so if the site maintains only a single machine (and therefore, a single mail or news server). Chapters 3, "Hackers and Crackers," and 8, "Internet Warfare," provide examples of denial-of-service attacks. These occur most often in the form of attacks like syn_flooding. An excellent definition of denial-of-service attacks is given in a popular paper called "Protecting Against TCP SYN Denial of Service Attacks":
The syn_flooder attack is instigated by creating a high number of half-open connections. Because each connection opened must be processed to its ultimate conclusion (in this case, a time-out), the system is temporarily bogged down. This appears to be a problem inherent in the design of the TCP/IP suite, and something that is not easily remedied. As a CERT advisory on this subject notes:
This hole, then, exists within the heart of the networking services of the UNIX operating system (or nearly any operating system running full-fledged TCP/IP over the Internet). Thus, although efforts are underway for fixes, I would not classify this as a high priority. This is because in almost all cases, denial-of-service attacks represent no risk of penetration. That is, crackers cannot harm data or gain unauthorized levels of privilege through these means; they can just make themselves nuisances.
Although UNIX is notorious for being vulnerable to denial-of-service attacks, other platforms are not immune. For example, as I will discuss in Chapter 16, "Microsoft," it is possible to bring certain NT distributions to a halt simply by Telnetting to a particular port and issuing a few simple characters. This forces the CPU to race to 100 percent utilization, thus incapacitating the machine altogether.
There are other forms of denial-of-service attacks. Certain denial-of-service attacks can be implemented against the individual user as opposed to a network of users. These types of attacks do not really involve any bug or hole per se; rather, these attacks take advantage of the basic design of the WWW.
In fewer than 40 seconds, the target machine would come to a grinding halt. (Oh, those with more than 64MB of RAM might survive long enough for the user to shut down the processes. Nonetheless, the average user would be forced to reboot.) This would cause what we technically classify as a denial-of-service attack.
These types of denial-of-service attacks are generally lumped into the category of malicious code. However, they do constitute a type of DoS attack, so I thought they were worth mentioning here.
One particularly irritating denial-of-service attack (which is being incorporated into many Windows 95 cracking programs) is the dreaded CHARGEN attack. CHARGEN is a service that runs on port 19. It is a character generator (hence the name) used primarily in debugging. Many administrators use this service to determine whether packets are being inexplicably dropped or where these packets disappear before the completion of a given TCP/IP transaction. In any event, by initiating multiple requests to port 19, an attacker can cause a denial-of-service attack, hanging the machine.
Holes That Allow Local Users Unauthorized Access
Still higher in the hole hierarchy (class B) are those holes that allow local users to gain increased and unauthorized access. These types of holes are typically found within applications on this or that platform.
A local user is someone who has an account on the target machine or network. A typical example of a local user is someone with shell access to his ISP's box. If he has an e-mail address on a box and that account also allows shell access, that "local" user could be thousands of miles away. In this context, local refers to the user's account privileges, not his geographical location.
A fine example of a hole that allows local users increased and unauthorized access is a well-known sendmail problem. sendmail is perhaps the world's most popular method of transmitting electronic mail. It is the heart of the Internet's e-mail system. Typically, this program is initiated as a daemon at boot time and remains active as long as the machine is active. In its active state, sendmail listens (on port 25) for deliveries or other requests from the void.
When sendmail is started, it normally queries to determine the identity of the user because only root is authorized to perform the startup and maintenance of the sendmail program. Other users with equivalent privileges may do so, but that is the extent of it. However, according to the CERT advisory titled "Sendmail Daemon Mode Vulnerability":
Thus, a local user can gain a form of root access. These holes are quite common. One surfaces every month or so. sendmail is actually renowned for such holes, but has no monopoly on the phenomenon (nor is the problem indigenous to UNIX).
Older versions of sendmail contain a weakness in the buffer (you will learn a little bit about the buffer/stack scenario in the following paragraphs). As such, one used to be able to crack the system by invoking the debug option in sendmail and overflowing the buffer. This was done with the -d option. A similar problem surfaced regarding sendmail's communication with the syslog daemon (another buffer overflow problem).
These types of holes represent a serious threat for one reason: If a local user successfully manages to exploit such a hole, the system administrator may never discover it. Also, leveraged access is far more dangerous in the hands of a local user than an outsider. This is because a local user can employ basic system utilities to learn more about the local network. Such utilities reveal far more than any scanner can from the void. Therefore, a local user with even fleeting increased access can exploit that access to a much greater degree. (For that matter, the local user is behind your firewall, meaning he is free to conduct his affairs without further complications.)
The only real comfort with respect to these types of holes is that there is a much greater chance of identifying the offender, particularly if he is inexperienced. If the system administrator is running strong logging utilities, the offender will need a fair amount of expertise to escape detection.
Other Class B Holes
Most class B holes arise from some defect within an application. There are some fairly common programming errors that lead to such holes. One such error concerns the character buffer in programs written in C (hence, the dreaded buffer overflow). Buffer overflow is defined on the Jargon File as
Rather than exhaustively treat the subject of buffer overflows, I will briefly describe problem here. The purpose of this explanation is to familiarize you with a rather ingenious technique of gaining unauthorized access; I hope to do so without an endless examination of the C language (C is covered more extensively in Chapter 30, "Language, Extensions, and Security").
Programs written in C often use a buffer. Flatly stated, a buffer is an abstraction, an area of memory in which some type of text or data will be stored. Programmers make use of such a buffer to provide pre-assigned space for a particular block or blocks of data. For example, if one expects the user to input his first name, the programmer must decide how many characters that first name buffer will require (how many letters should be allowed in that field, or the number of keystrokes a user can input in a given field). This is called the size of the character buffer. Thus, if the programmer writes:
he is allowing the user 20 characters for a first name. But suppose the user's first name has 35 characters. What happens to the last 15 characters? They overflow the character buffer. When this overflow occurs, the last 15 characters are put somewhere in memory, at another address (an address the programmer did not intend for those characters to go to). Crackers, by manipulating where those extra characters end up, can cause arbitrary commands to be executed by the operating system. Most often, this technique is used by local users to gain access to a root shell. Unfortunately, many common utilities have been found to be susceptible to buffer overflow attacks.
Programmers can eliminate this problem through careful programming techniques. I am not suggesting here that programmers should provide error checking for each and every character buffer written; this is probably unrealistic and may be waste of time. For although these defects can certainly place your network at risk, the cracker requires a high level of skill to implement a buffer overflow attack. Although the technique is often discussed in cracking circles, few actually have the programming knowledge to do it.
The buffer overflow issue is nothing new; it has been with us at least since the days of the Worm. Eugene Spafford, as I have already noted, was one of the first individuals to conduct a purposeful analysis of the Worm. He did so in the now-famous paper, "The Internet Worm: An Analysis." Spafford's paper is undoubtedly the best source of information about the Worm.
In page 4 of that document, Spafford observes that the Morris Worm exploited a vulnerability in the fingerd daemon (the daemon that listens for and satisfies finger requests directed to port 79). The fingerd program utilized a common C language function known as gets(), which performs the simple task of reading the next line of input. gets() lacked any function to check for bounds, or incoming input that could potentially exceed the buffer. Thus, Morris was able to overflow that buffer and reportedly push other code onto the stack; this code provided the Worm with needed system access. Spafford observes that this vulnerability was well known in programming communities, even then. He further explains that functions that fail to check for potential overflows should not be used. Yet even today, programs are written with the same, basic flaws that allowed the Worm to travel so far, so fast.
Holes That Allow Remote Users Unauthorized Access (Class A)
Class A holes are the most threatening of all and not surprisingly, most of them stem from either poor system administration or misconfiguration. Vendors rarely overlook those holes that allow remote users unauthorized access. At this late stage of the game, even vendors that were previously not security minded have a general grasp of the terrain.
The typical example of a misconfiguration (or configuration failure) is any sample script that remains on the drive, even though the distribution docs advise that it be removed. One such hole has been rehashed innumerable times on the Net. It involves those files included within Web server distributions.
Most Web server software contains fairly sparse documentation. A few files may exist, true, and some may tout themselves as tutorials. Nonetheless, as a general rule, distributions come with the following elements:
To the credit of those distributing such software, most configuration files offer a warning regarding sample scripts. Nonetheless, for reasons of which I am uncertain, not everyone heeds those warnings (at least one government site recently cracked had this problem). In any case, these scripts can sometimes provide an intruder from the void with access ranging from limited to root.
Probably the most talked-about hole of this kind is the vulnerability in a file called test-cgi, distributed with early versions of the Apache Web Server distribution. This file contained a flaw that allowed intruders from the void to read files within the CGI directory. If your test-cgi file contained the following line, you were probably vulnerable:
echo QUERY_STRING = $QUERY_STRING
As noted in the article titled "Test-CGI Vulnerability in Certain Setups":
Interestingly, no sooner than this advisory (and others like it) circulated, it was found that:
echo QUERY_STRING = "$QUERY_STRING"
Problems like this are common. For example, one HTTP server on the Novell platform includes a sample script called convert.bas. The script, written in BASIC, allows remote users to read any file on the system.
This problem sometimes involves more than just a sample script; sometimes it involves the way scripts are interpreted. For example, version 1.0 of Microsoft's Internet Information Server (IIS) contains a hole that allows any remote user to execute arbitrary commands. The problem is that the IIS HTTP associates all files with a *.bat or *.cmd extension to the program cmd.exe. As explained by Julian Assange (author of Strobe), the problem is not restricted to IIS:
Naturally, these holes pose a significant danger to the system from outside sources. In many cases, if the system administrator is running only minimal logs, these attacks may go unrecorded. This makes it more difficult to apprehend the perpetrators.
You can readily see, then, why programs like scanners have become such an important part of the security scheme. Scanners serve the vital purpose of checking for these holes. The problem is, of course, that for a scanner to include the capability to scan for a particular vulnerability, that vulnerability must already be well known. Thus, although security programmers include such holes as scan options in their programs, they are often several months behind the cracking community. (Also, certain holes--such as the syn_flooding hole that allows denial-of-service attacks--are not easily remedied. Such holes are imperfections that system administrators must learn to live with for the moment.)
What makes the situation more difficult is that holes on platforms other than UNIX take more time to surface. Many NT system administrators do not run heavy logs. To report a hole, they must first have some evidence that the hole exists. Moreover, newer system administrators (of which a higher percentage exists amongst the IBM-compatible set) are not well prepared for documenting and reporting security incidents. This means that time passes before such holes are presented, tested, re-created in a test environment, and ultimately, implemented into scanners.
There is also the question of quality. Five years ago, software for the Internet was coded primarily by the academic communities. Such software had bugs, true, but the quality control worked quite differently from today's commercial schemes. In those days (they seem so distant now!), a product was coded by and released from some CS lab. Several hundred (or even several thousand) people would download the product and play with it. Bug reports would flow in, problems would be addressed, and ultimately, a slow but progressive process of refinement would ensue.
In the current commercially charged climate of the Internet, applications of every type are popping up each day. Many of them are not subjected to a serious analysis for security flaws within the code (no matter how fervently their proponents urge otherwise). In fact, it is common to see the same programming errors that spawned the Morris Worm.
To demonstrate this point, I will refer to the buffer overflow problem. As reported in a 1995 advisory on a vulnerability in NCSA HTTPD (one of the world's most popular Web server packages):
According to the CERT advisory ("NCSA HTTP Daemon for UNIX Vulnerability") that followed:
As explained in Chapter 9, "Scanners," many individuals unwittingly run HTTPD as root. Thus, this vulnerability would provide remote users with root access on improperly configured Web servers.
In the preceding paragraphs, I named only a few holes. This might give you the erroneous impression that only a handful of programs have ever had such holes. This is untrue. Holes have been found in nearly every type of remote access software at one stage or another. The list is very long indeed. Here is a list of some programs that have been found (over the years) to have serious class A holes:
In addition to these programs having class A holes, all of them have had class B holes as well. Moreover, in the class B category, dozens of other programs that I have not mentioned have had holes. Finally, a good number of programs have class C holes as well. I will be addressing many of these in upcoming chapters.
The Impact of Holes on Internet Security
Now that you have read a bit about some common holes, the next step is to know what impact they can have on Internet security. First, know this: Any flaw that a cracker can exploit will probably lead to other flaws. That is, each flaw (large or small) is a link in the network chain. By weakening one link, crackers hope to loosen all the other links. A true cracker may use several techniques in concert before achieving even a modest goal. If that modest goal can be achieved, other goals can also be achieved.
For example, perhaps a cracker is working on a network on which he does not have an account. In that instance, he must first acquire some form of access to the system (access above and beyond whatever diagnostic information he may have culled from SATAN, ISS, or other scanners). His first target, then, might be a user on that network. If he can compromise a user's account, he can at least gain shell access. From that point on, other measures may be taken.
Is This Hole Problem As Bad As They Say?
Yes and no. Holes are reported to a variety of mailing lists each day. Nonetheless, those holes vary in severity. Many are in the class C category and not particularly important. As an interesting experiment, I decided to categorize (by operating-system type) all holes reported over a two-month period.
Instead of indiscriminately picking instances of a particular operating system's name and adding this to the tables (for example, grabbing every posting that referred to the syslog hole), I carefully sifted through each posting. I chose only those postings that reported the first instance of a hole. All trailing messages that discussed that hole were excluded. In this way, only new holes were added to my data. Furthermore, I pulled only the first 50 on each operating system. With one minor exception that I explain later, I had no reason to assume that the percentage would be greatly influenced by pulling 100 or 1,000.
I must advise you of one final point. Figure 15.2 shows an astonishing number of holes in HP-UX (Hewlett Packard's OS). This prevalence of HP-UX holes is largely due to a group called "Scriptors of Doom." These individuals have concentrated their efforts on finding holes indigenous to HP-UX. They have promised "one hole a week." Because of their activity, HP-UX appears to have security problems that are more serious than other operating systems of a similar ilk. This is not really the case. That settled, please examine Figure 15.2.
Note that Sun (Solaris), AIX, and FreeBSD were running neck and neck, and that IRIX had just slightly fewer holes than Linux. But which of these holes were serious security risks? Which of these--per platform--were class B or class A vulnerabilities? To determine this, I reexamined the data from Figure 15.2 and excluded all vulnerabilities that could not result in local or remote users gaining root access. Table 15.1 lists the results.
Table 15.1. Operating system holes that allowed root access.
Still, this information could be misleading, so I analyzed the data further. All of the listed operating systems were vulnerable to at least one bug present in their counterparts. That is, at least one bug was common to all operating systems sampled. After excluding these holes, the average was 2.5 holes per platform. AIX fell completely out of the running at that stage, having a total value of 0. Does this mean that AIX is the safest platform? No. It simply means that this two-month period spawned few advisories relevant to AIX.
This brings me to an important point. You may often see, particularly on Usenet, individuals arguing over whether Solaris is tighter than AIX or whether Linux is tighter than FreeBSD and so forth. These arguments are exercises in futility. As it happens, all operating systems have their holes. Long-term examination of reporting lists reveals that advisories go in cycles. Were I to sample another period in time, AIX might be the predominate victim. There is no mysterious reason for this; it breaks down to the nature of the industry. When a hole is discovered in sendmail, for example, it is not immediately clear as to which platforms are affected. Determining this takes time. When the hole is confirmed, a detailed description is posted to a list, and chances are that more than half of all machines running sendmail are affected. But when holes are discovered in proprietary software, any number of things can happen. This might result in a one-month run of advisories on a single platform.
Holes on Other Platforms
Analyzing holes on other platforms is more difficult. Although vendors maintain documents on certain security holes within their software, organized reporting (except in cases if virus attacks) has only recently become available. This is because non-UNIX, non-VAX systems have become popular server platforms only in the last two years.
Reporting for these holes has also been done (up until recently) by individual users or those managing small networks. Hard-line security professionals have traditionally not been involved in assaying, for example, Microsoft Windows. (Oh, there are hundreds of firms that specialize in security on such platforms, and many of them are listed in this book. Nonetheless, in the context of the Internet, this has not been the rule.)
Discussions About Holes on the Internet
Finding information about specific holes is simple. Many sites, established and underground, maintain archives on holes. Established sites tend to sport searchable indexes and may also have classic security papers ranging back to the days of the Worm. Underground sites may have all of this, as well as more current information. The majority of holes, in fact, are circulated among cracking communities first. For information about locating these resources, see Appendix A, "How to Get More Information." To whet your appetite, a few sites and sources for information about security holes follow.
World Wide Web Pages
You'll find loads of information about holes on numerous Web pages. Following are some that you should check out.

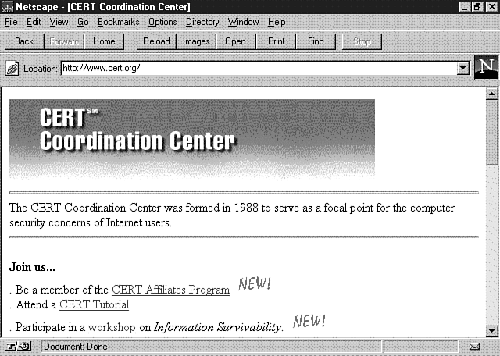

The Computer Emergency Response Team was established after the Internet Worm debacle in 1988 (young Morris scared the wits out of many people on the Net, not the least of which were those at DARPA). CERT not only issues advisories to the Internet community whenever a new security vulnerability becomes known, it
The real gold mine at CERT is the collection of advisories and bulletins. You can find these and other important information at http://www.cert.org (see Figure 15.3).
Department of Energy Computer Incident Advisory Capability
CIAC was also established in 1989, following the Morris Worm. This organization maintains a database of security related material intended primarily for the U.S. Department of Energy. The CIAC site is one of the best sources for security information. In addition to housing tools, this site also houses a searchable archive of security advisories. Moreover, CIAC provides to the public a series of security papers. Also, CIAC now utilizes the Adobe PDF file format, so the papers it provides are attractive, easily navigated, and easily formatted for printing. PDF format is, in my opinion, far superior to PostScript format, particularly for those not running UNIX.
Important information provided by CIAC to the public includes the following:

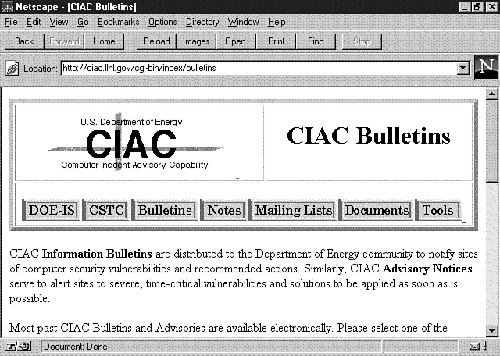

CIAC is located at http://ciac.llnl.gov/ (see Figure 15.4).
The National Institute of Standards and Technology Computer Security Resource Clearinghouse

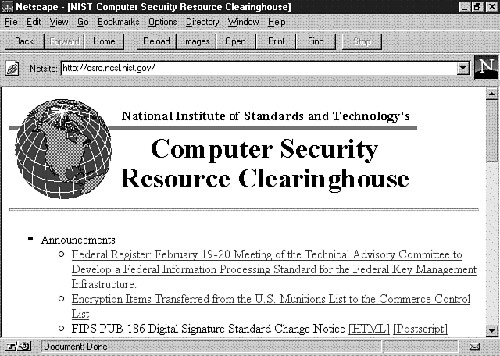

The NIST CSRC WWW site (see Figure 15.5) is a comprehensive starting point. NIST has brought together a sizable list of publications, tools, pointers, organizations, and support services.

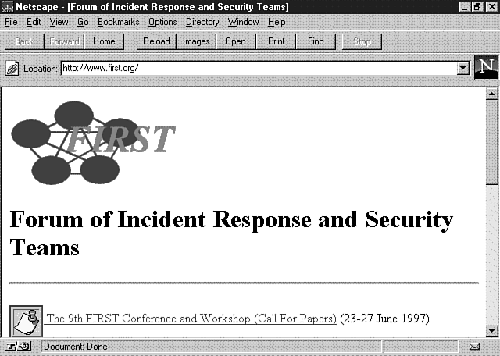

The Forum of Incident Response and Security Teams (FIRST)
FIRST is a really a coalition of many organizations, both public and private, that work to circulate information on and improve Internet security. Some FIRST members are
The interesting thing about FIRST is that it exercises no centralized control. All members of the organization share information, but no one exercises control over any of the other components. FIRST maintains a list of links to all FIRST member teams with WWW servers. Check out FIRST at http://www.first.org/team-info/ (see Figure 15.6).
The Windows 95 Bug Archive
The Windows 95 Bug Archive is maintained at Stanford University by Rich Graves. To his credit, it is the only truly comprehensive source for this type of information. (True, other servers give overviews of Windows 95 security, but nothing quite like this page.) This archive is located at
Mr. Graves is a Network Consultant, a Webmaster, an Apple Talk specialist, and a master Gopher administrator. He has painstakingly collected an immense set of resources about Windows 95 networking (he is, in fact, the author of the Windows 95 Networking FAQ). His Win95NetBugs List has a searchable index, which is located here:
The site also features an FTP archive of Windows 95 bugs, which can be accessed via the WWW at this locale:
The ISS NT Security Mailing List
This list is made available to the public by Internet Security Systems (ISS). It is a mailing list archive. Individuals post questions (or answers) about NT security. In this respect, the messages are much like Usenet articles. These are presented at the following address in list form and can be viewed by thread (subject tag), author, or date.
From this address, you can link to other security mailing lists, including not only Windows NT-related lists, but integrated security mailing lists, as well. You also have the option of viewing the most recent messages available.
Such lists are of great value because those posting to them are usually involved with security on an everyday basis. Moreover, this list concentrates solely on Windows NT security and, as such, is easier to traverse and assimilate than mailing lists that include other operating systems.
One particularly valuable element of this page is that you can link to the Windows NT Security Digest Archive Listing. This is a comprehensive database of all NT postings to the security list. Appendix A provides a description of various methods to incisively search these types of archives using agents. For the moment, however, it suffices to say that there are some very talented list members here. Even if you visit the list without a specific question in mind, browsing the entries will teach you much about Windows NT security.
The National Institutes of Health
The Computer Security Information page at the National Institutes of Health (NIH) is a link page. It has pointers to online magazines, advisories, associations, organizations, and other WWW pages that are of interest in security. Check out the NIH page at this locale:
This is a big site. You may do better examining the expanded index as opposed to the front page. That index is located here:
The Bugtraq Archives
This extraordinary site contains a massive collection of bugs and holes for various operating systems. The Bugtraq list is famous in the Internet community for being the number one source for holes.
What makes Bugtraq so incredibly effective (and vital to those studying Internet security) is that the entire archive is searchable. The information can be searched so incisively that in just a few seconds, you can pin down not only a hole, but a fix for it. The archive search index offers several choices on the type of search.
One important amenity of the Bugtraq list is that it is not inundated with advertisements and other irrelevant information. The majority of people posting to the list are extremely knowledgeable. In fact, the list is frequented by bona fide security specialists that solve real problems every day. Chris Chasin, the host of Bugtraq, defines the list as follows:
In my opinion, Bugtraq is the Internet's most valuable resource for online reporting of UNIX-based vulnerabilities. Visit it here:
The Computer and Network Security Reference Index
This index is another fine resource page. It contains links to advisories, newsgroups, mailing lists, vendors, and archives. Check it out at
Eugene Spafford's Security Hotlist
This site can be summed up in five words: the ultimate security resource page. Of the hundreds of pages devoted to security, this is the most comprehensive collection of links available. In contrast to many link pages whose links expire, these links remain current. Check it out on-line at
Table 15.2 contains a list of security-related mailing lists that often distribute advisories about holes. Most are very useful.
Table 15.2. Mailing lists for holes and vulnerabilities.
In this chapter, you have learned a bit about holes. This knowledge will serve you throughout the remainder of the book, for I discuss various holes in many chapters.
In closing, if you are new to security, the preceding pages may leave you with the sense that a hole is evidence of vendor incompetence. Not so. Vendor-based holes may take a long time to fix. If the vendor is large, this may expand into weeks or even months. Development teams in the corporate world work much like any other body. There is a hierarchy to be traversed. A software programmer on a development team cannot just make a material alteration to a program because he or she feels the need. There is a standardized process; protocols must be followed. Perhaps even worse is when the flaw exists in some standard that is administrated by a committee or board. If so, it may be a long, long time before the hole is fixed.
For the moment, holes are a fact of life. And there is no likelihood of that changing in the near future. Therefore, all system and network administrators should study such holes whenever they can. Consider it a responsibility that goes along with the job title because even if you don't study them, crackers will.
